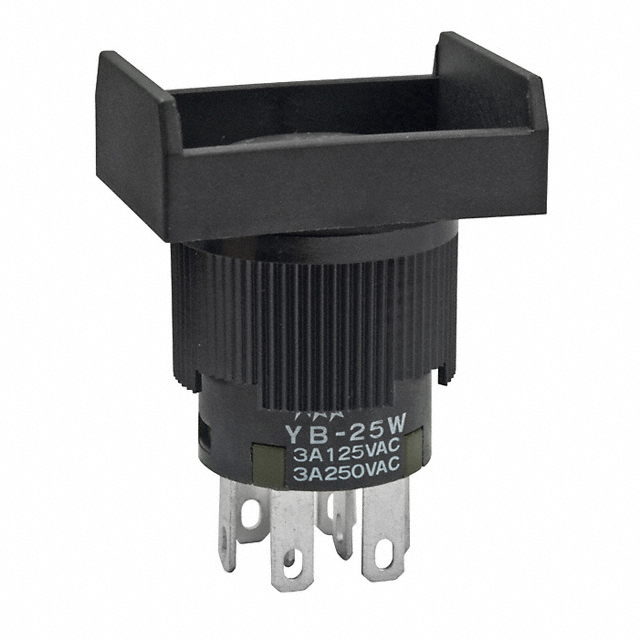

Images are for reference only.
Check Product Specifications and description for product details.
If you are interested to buy NKK Switches YB25WRKW01,Just Email us.
Sales@BesenChips.com
our sales team will send you quotation within 24 hours
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard |
| Termination Style: | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-Mom |
| Series: | YB |
| Panel Cutout Dimensions: | Circular - 16.00mm Dia |
| Packaging: | Bulk |
| Other Names: | YB25WRKW01-RO YB25WRKW01-RO-ND |
| Operating Temperature: | -25°C ~ 70°C |
| Mounting Type: | Panel Mount, Front |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 1,000,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP65 - Dust Tight, Water Resistant |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 100,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard Panel Mount, Front |
| Current Rating: | 3A (AC/DC) |
| Color - Actuator/Cap: | - |
| Circuit: | DPDT |
| Actuator Type: | Plunger for Cap |
| Email: |
