| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | - |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.750" (19.05mm) |
| Other Names: | S2041-24 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 48 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic, Polyester |
| Insulation Height: | 0.100" (2.54mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |

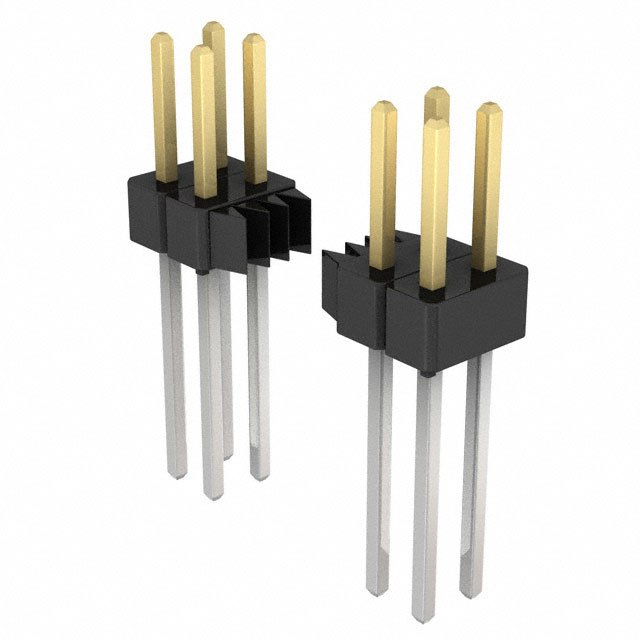

| Detailed Description: | Connector Header Through Hole 48 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.420" (10.67mm) |
| Contact Length - Mating: | 0.230" (5.84mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
